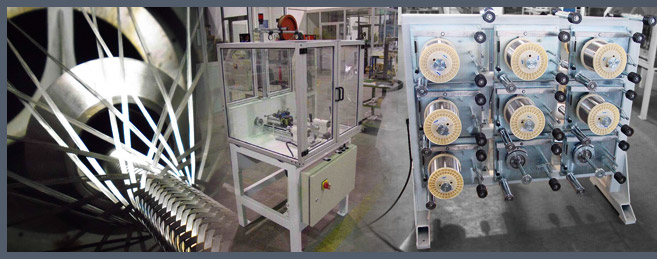

SEMIAUTOMATIC BOBBIN WINDING MACHINES
Particularly suitable to the parallel winding of yarn and wire, these Machines include several models, with single or double bobbins for the whole satisfaction of several production needs.
The Series include the following models: BT 2/130: suitable for yam windingBM 2/130: for soft wire applications (copper, aluminium) Common Features: The winder can be set up for different bobbin sizes.Electrical control complete of variable frequency control for carrier speed adjustment and progressive start.Waming lamp signal.Bobbins' filling level programmable by pulse counter or meter counter.Immediate and automatic machine stop in case of threads' break:or feeding bobbin's exhaustion
BT 2/130
BM 2/130
Winding Material
Yarn and Composite Aramidic Fibers
Copper and Aluminum wires
Bobbins Nr.
2
2
Winding Speed (R.P.M)
0-3000
0-3000
Bobbin Flange Diam. (mm.)
Min.-Max
40-120
40-70
Bobbin Length (mm.)
Min.-Max.
30-300
30-175
Winding Pitch (mm.)
0-5
0-5
Centers
Spring Mechanism
Spring Mechanism
