VERTICAL BRAIDING MACHINES: TYPE 80-104
 Because of SINTECH high precision technology, the 80 and 104 series braiding machines are perfectly
positioned in the market for small size braiders.
With a large variety of bobbin sizes and carrier designs the 80 and 104 series can produce round,
tubular or flat braids working with traditional as well as new high tech fibres, with common advantages as follows.
FAST: Hom gears speed up to 340 RPM grant high production performance
 QUIET AND COMPACT: The innovative integrated frame with sound proofing panels guarantee a
noise level below 80 dBA without any loss of space or maneuverability.
RELIABLE: The high quality of materials, efficient oil bath lubrication system as well as a decade
manufacturing experience insure a high level of reliability and minimal operating costs.
COMPLETE: Available with the reliable electronic axis controller or change gear pitch, the 80 and 104 series braiding machines are offered with countless combinations and models to meet all production needs.
INDEPENDENT: The electronic devices installed on the machines have been designed to guarantee perfect operation without a constant presence of an operator.
|
| |
 |
|

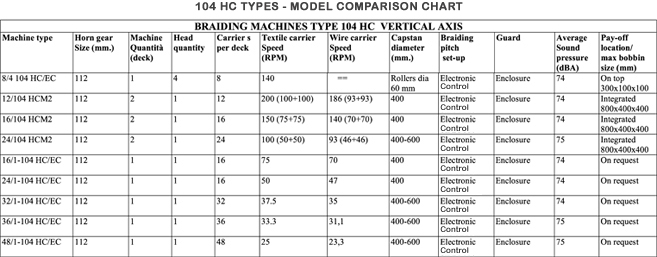

VERTICAL BRAIDING MACHINES: TYPE l04HC
 The braiders of the 104 HC series have been specifically developed aiming to a quality product with
high output, representing the best alternative to the rotary type braiders.
Typically used for the screening of electrical cables in general, the braiders ofthe 104 HCM series
have been rapidly evolving with the 112 mm horn gear that enables the use of textile carriers.
High bobbin capacity and updated technical features increase the versatility of the 104 HCM
braiders and make them suitable for the widest range of applications.
Main Applications:
Shielding of coaxial, antenna, data transmission, heating, defrosting and high temperature cableFlat, round and tubular electrical braidsElectric/steam cablePower cableCatheter and medical productsNautical, safety, climbing, novelty ropesGlass, carbon fiber and composite braidsReinforcing of small rubber, thermoplastic, PTFE, silicone hose |
| |
 |
|

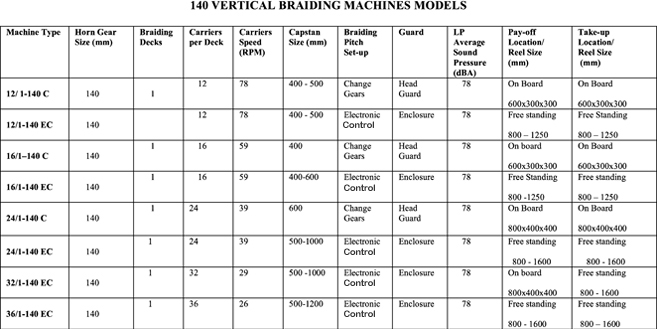

VERTICAL BRAIDING MACHINES: TYPE 140V
 The vertical axis braiding machines of the 140V series represent the best solutions for several applications, due to their particular construction, wide number and type of carriers available.
The best feature of the 140 is the outstanding compromise of speed and carriers' capacity that allows for outstanding production rates, as well as, low number of bobbin changes and reduced machine downtime. |
| |
 |
| |
